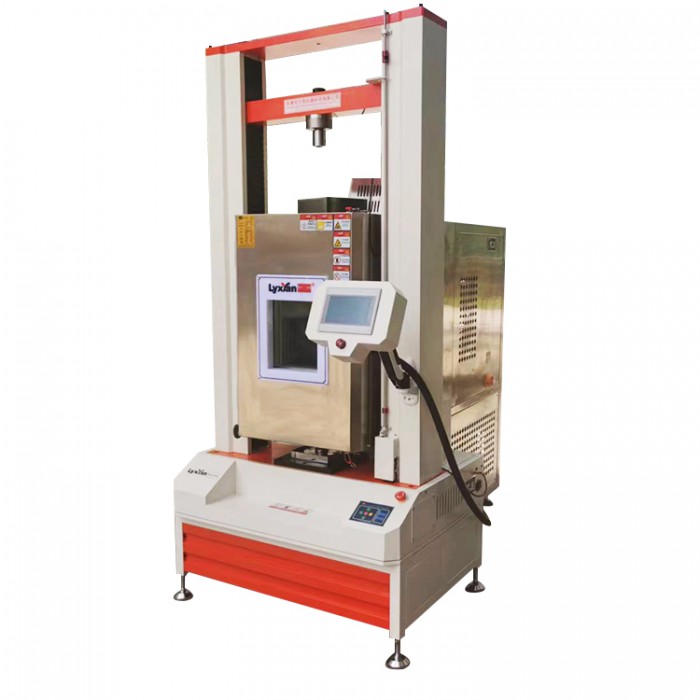

Lixian ISO 6892-2 Steel bar material high and low temperature tensile testing machine HZ-1003C-Dongguan Lixian Instrument Scientific Co.

Product Details

Main function：

High and Low Temperature Tensile Testing Device HZ-1003C mainly applied to test the force of metallic and non-metallic materials in the high temperature environment, the force such as tension, compression, bending, shear, peel, tear or two-points extensions (need to add extensometer) and others., the material such as rubber, plastic, wire and cable, optical fiber and cable, safe belt, leather belt composite materials, plastic profiles, waterproof membrane, steel, copper, profiles, spring steel, bearing steel, stainless steel (as well as other high-hardness steel), castings, plate, strip, non-ferrous metal wire .

Corresponding standard :
GB/T16491, GB/T 4338, GB/T 6037, GB/T 2951, GB/T 13239, GB/T 2039, HB 5150, HB 5195, HB 5211, HG/T 3868, ASTM D2295, JIS H7601-2, JIS R1606, NF EN 12814-6, BS EN 12814-6

Technical parameter:

Model	HZ-1003C
Load cell	1kN, 2kN, 5kN, 10kN
Accurate grade	1 grade /0.5 grade
Effective measuring range	0.2%～100% (1grade) / 0.4%～100% (0.5 grade)
Measuring accuracy	Tolerance ±1% / tolerance ±0.5%
Tester resolution	1/200000
Effective testing width	380mm
Effective tensile stroke	1000mm
Range of testing speed	0.001～500mm/min
Accuracy of displacement measurement	Tolerance: ±0.5% / tolerance: ±0.2%
Overload protection	Overload 10%, automatic protection
Power system	Panasonic AC Servo Motor + Driver + high-precision ball screw
Temperature range	Normal temperature～200°C
Inside space	300350500mm
Cooling system	Compression from France
Power supply	220V, 50HZ
Units	Kg, N, LB, TON can be exchanged.

4 (2) 3 (2)
