- Product Details
Equipment Overview

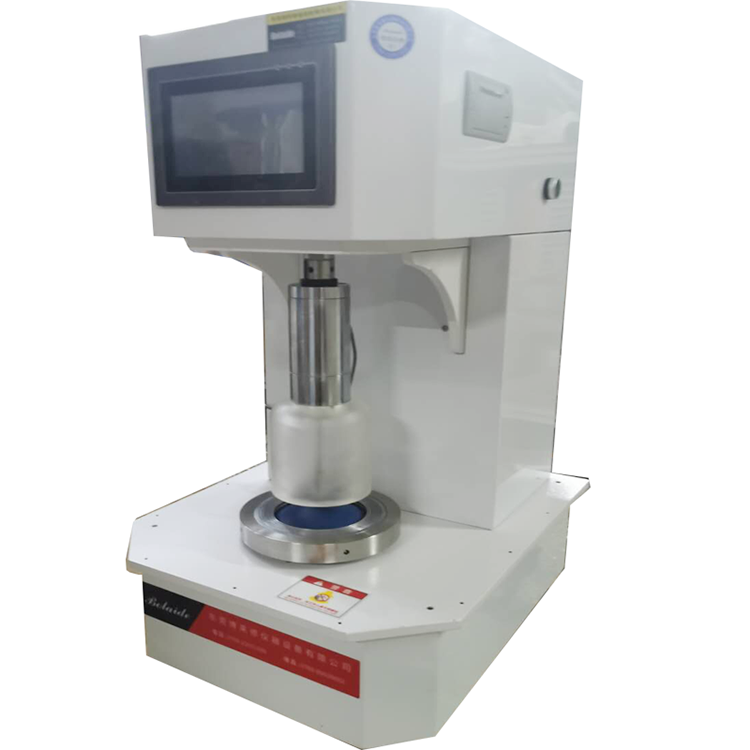

The burst strength tester is a powerful and versatile instrument that has been extensively redesigned and has a modern appearance and a series of new functions. The inherent flexibility allows it to test a wide range of material categories, including Textiles, non-woven fabrics, paper, cardboard, plastics and medical products, etc.
Design Standard
ISO2960 ASTMD3786
Characteristics:
It meets the new national standard and can be equipped with multiple test chucks as required
Touch screen operation, Chinese and English man-machine interface. Support online communication
The sample holder is equipped with a pneumatic sample clamping system, which saves effort and the sample does not slip during testing.
Professional development of supporting test system.
Applicable Industry
It is suitable for knitted, woven, nonwoven and laminated fabrics as well as all kinds of fabrics made by other processes.
Technical Parameters
| Model | HZ-8059A |
Measuring range (full scale range is 1% ~ 100%) | 0～2.00Mpa |
Accuracy | 0.5%fs |
Elastic diaphragm thickness | ≤2mm |
Test are | 50CM2 ( or specified) |
Maximum expansion | 75±0.02mm |
Maximum burst time | 30.0s |
Compression rate | 10-500ml/min |
Test method | Constant speed, constant pressure, constant expansion,constant time |
Test unit | kpa、 kgf/ cm2、 atm、 mmHg、 lb/in2, can be exchanged |
Output form | Print output, display output, support online communication |
Power | AC20V 50Hz 180W |
Size | 560mm×400mm×650mm (length×width×hight) |
Weight | 80 kg |
HS code | 9024800000 |
