- Product Details
Equipment Overview

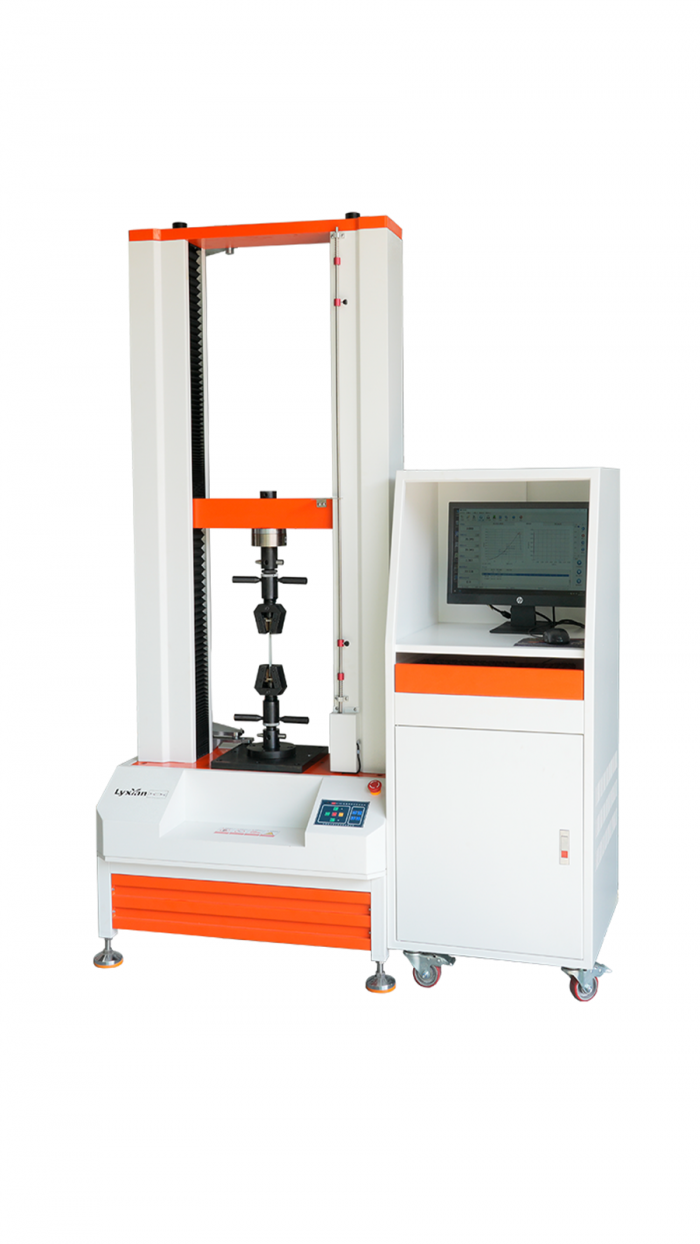

HZ-1003A 20kn ASTM D5034 Textiles Fabric Elongation Tensile Strength Testing Equipment is a new material testing machine that combined with the electronic technology and mechanical transmission, it has accurate load speed, range of force measurement, Has high accuracy and sensitivity for the load, displacement measurement and control, This machine is simple to operate, simple structure, it can be directly placed on the testing table for test, especially suitable for controlling quality in production line This series of machine is mainly applied to test the non-metallic and metallic materials which the load is less than 100KN.
Standard：ASTM D5034
Main Feature
This Textiles Fabric Elongation Tensile Strength Testing Equipment is suitable for stretching, compression, bending, shearing and peeling of materials and products in various textile, rubber, plastic, synthetic leather, tape, adhesive products, plastic film, composite materials, electronics, metal and other industries. A variety of tests, such as 90 degrees and 180 degrees), tearing, two-point extension (with an additional extensometer), to determine the quality of the product.
Applicable Industry
It is widely used in Textiles Fabric，small size metal，rubber，wire and cable, hardware, electronic and electrical equipment, packaging, printing, medical equipment, auto parts, textiles and leather, clothing, shoes, rubber and plastic products, colleges and universities; research laboratories; inspection arbitration, technical supervision departments and many other industries, it is the basic equipment for quality management and physical tested
Technical Parameters
Model | HZ-1003A | HZ-1003B |
Control mode | Digital Type | Computeried Type |
Capacity | 5KN,10KN,20KN, optional | |
Computer system | RealTest software control, Chinese and English operation | |
Units | Kg、Lb、N, (can be exchanged) | |
Measurement system | load weight + RealTest System | |
Load accuracy | load weight + HZ-2000 display ± 0.5% (5% -100% of full scale) | |
Resolution | 1/50000 | |
Effective test width | The distance between the test column and the sensor is 60mm. | |
Power system | Taiwan Delta AC motor,deceleration device from Italy | |
Maximum test space | Approx. 500mm (without gripper, special test space can also be customized ) | |
Test speed | 50~300 mm/min (Can customize） | |

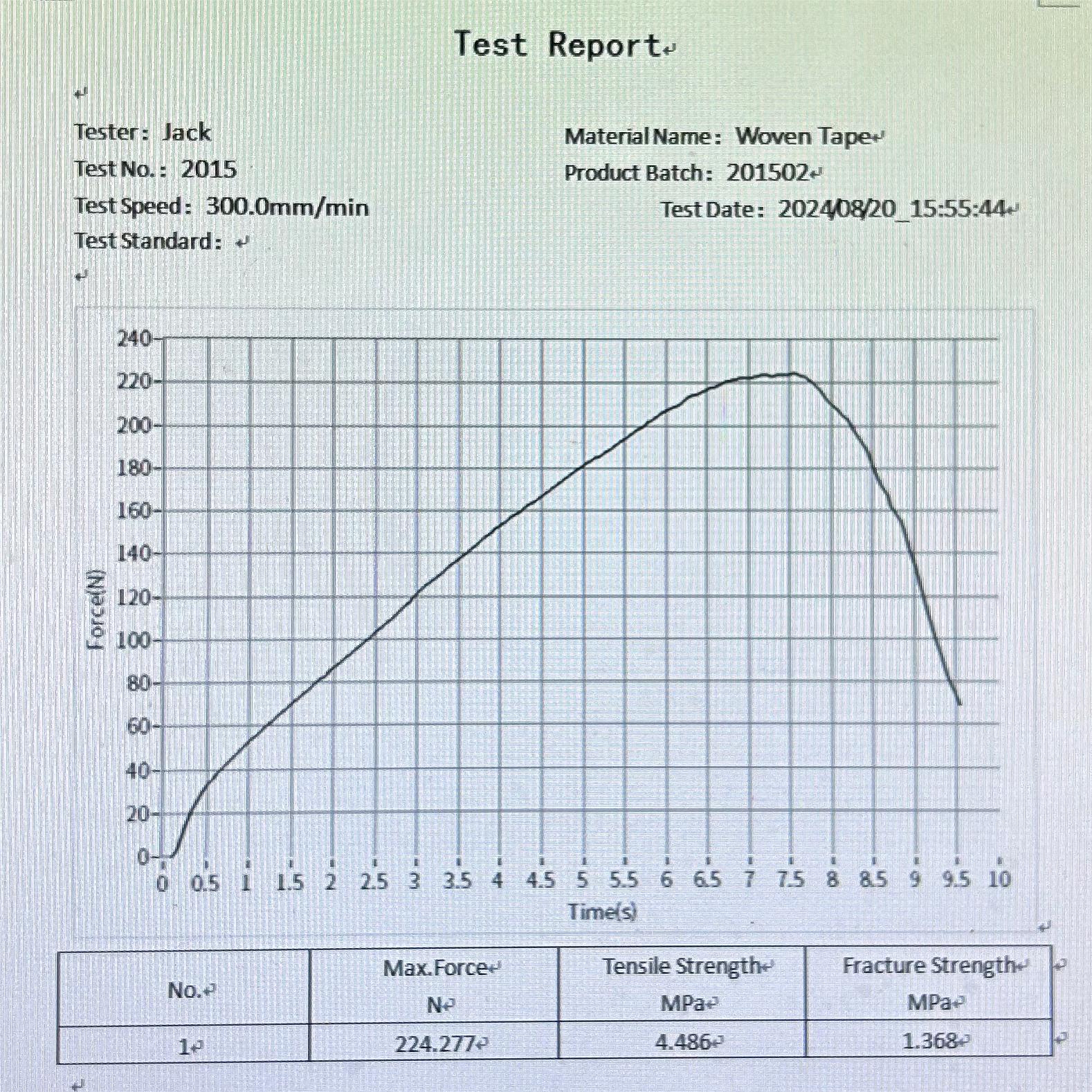

Display mode | RealTest software system: ① single test, 10-point statistics manually and automatically calculate its average and break values; ②. Multi-unit automatically exchange such as kg, Lb, N; ③. function of free to take point; ④. With multi-calibration function; ⑤. Auto printing function; ⑥. Using 24-bit AD acquisition, resolution 1 / 200000; ⑦. Ratio of Breakpoint from 0 ~ 99%, which the user can set according to different materials to stop the machine ⑧. Overload protection function can be set, effectively preventing machine from overload | |
Safety devices | overload, emergency stop , limited devices of displacement,leak current protection | |
Power | 750W(depending on different demand of force using different motor) | |
More machine types
 |  |  |  |  |  |
| HZ-1007A | HZ-1007C | HZ-1007E | HZ-1003E | HZ-1005B | HZ-1005A |
| Max Force:200kg | Max Force:200kg | Max Force:100kg | Max Force:500kg | Max Force:500kg | Max Force:500kg |
 |  |  |  |  |  |
| HZ-1003A | HZ-1004A | HZ-1009A | HZ-1010A | HZ-1009C | HZ-1009B |
| Max Force:3T | Max Force:500kg | Max Force:10T | Max Force:3T | Max Force:10T | Max Force:30T |
