Peeling Testing Machine Equipment Overview
The horizontal photovoltaic welding tape peeling force tester uses a PC and an interface board to collect, save, process and print test results. It can calculate: maximum force, tensile strength, elongation at break, maximum peel force, minimum peel force, average peel force, maximum peel strength, minimum peel strength, average peel strength, range, ring initial adhesion, unwinding force, puncture force, puncture strength, bag sealing force, adhesive strength and other parameters; it can perform multi-curve processing, multi-sensor support, graphic interface, flexible data processing, MS-ACCESS 2003 database support, making the system more powerful. Supports multiple languages to switch at will. The database field display name of the test data is automatically translated with the selected text, making the data easy to browse in the local text, meeting the use of the test machine all over the world; supports 3 types: SI international standard unit, kg-cm unit, Lb-Inch imperial unit, 6 common units: N-mm-MPa, kN-mm-MPa, gf-cm-kgf/cm, kgf-cm-kgf/cm2, Lb-Inch-kpsi, kP-Inch-kpsi, easy to switch units. Meet the use of standards in different regions.
Peeling Testing Machine Specification

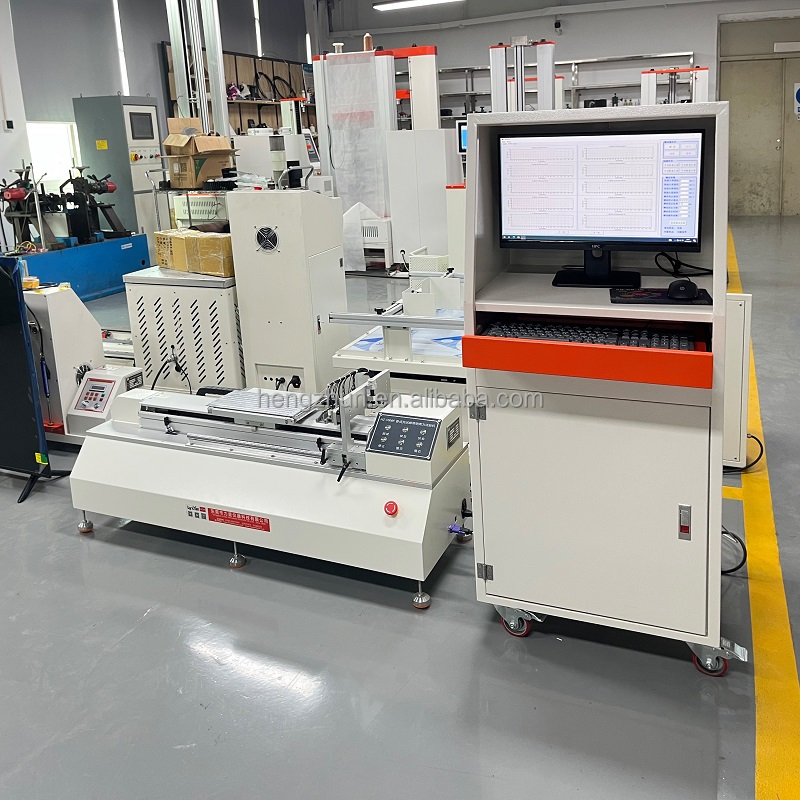

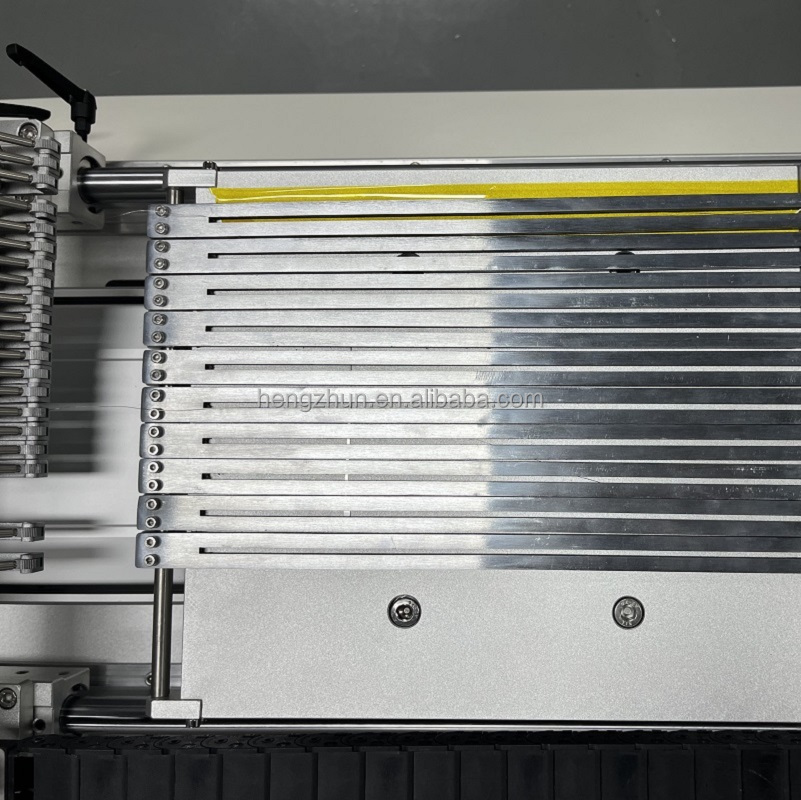

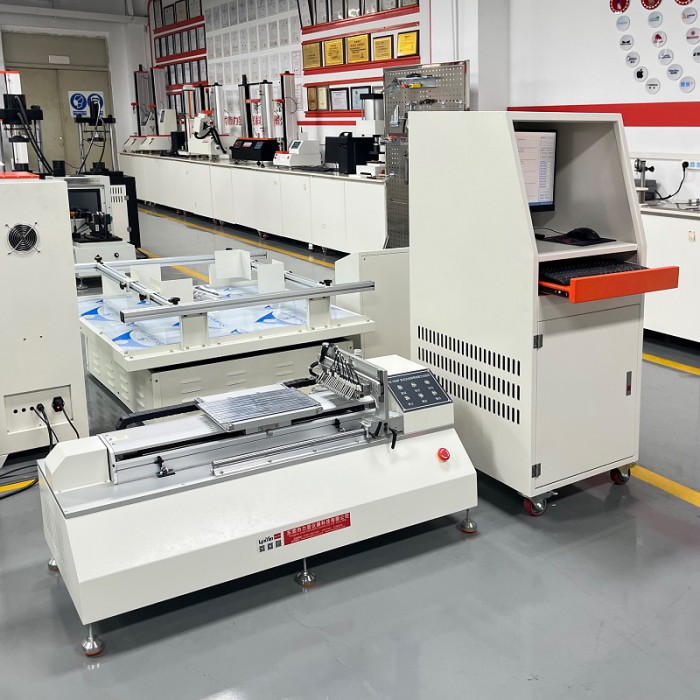

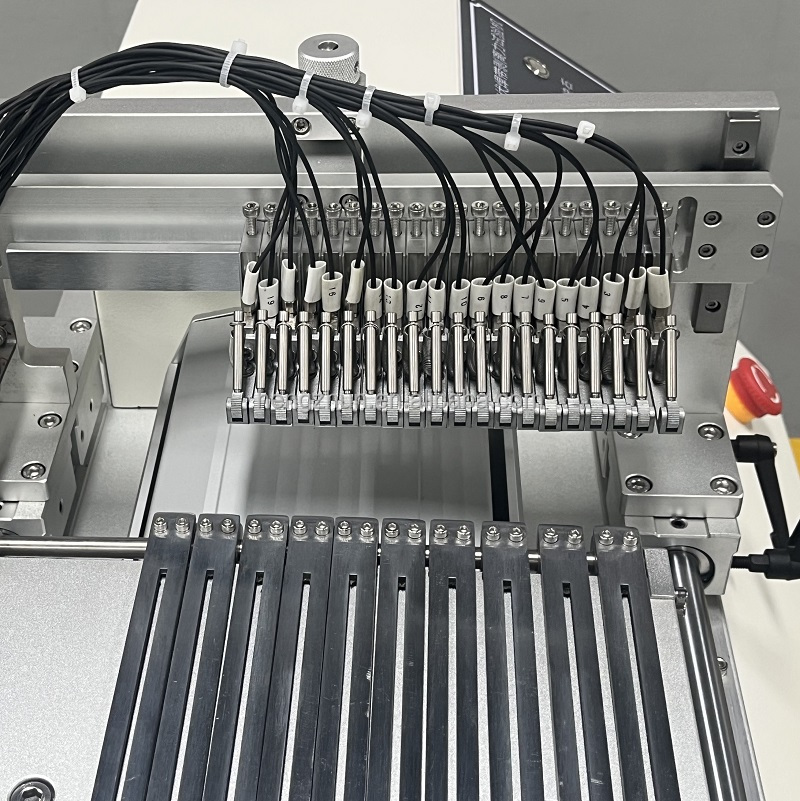

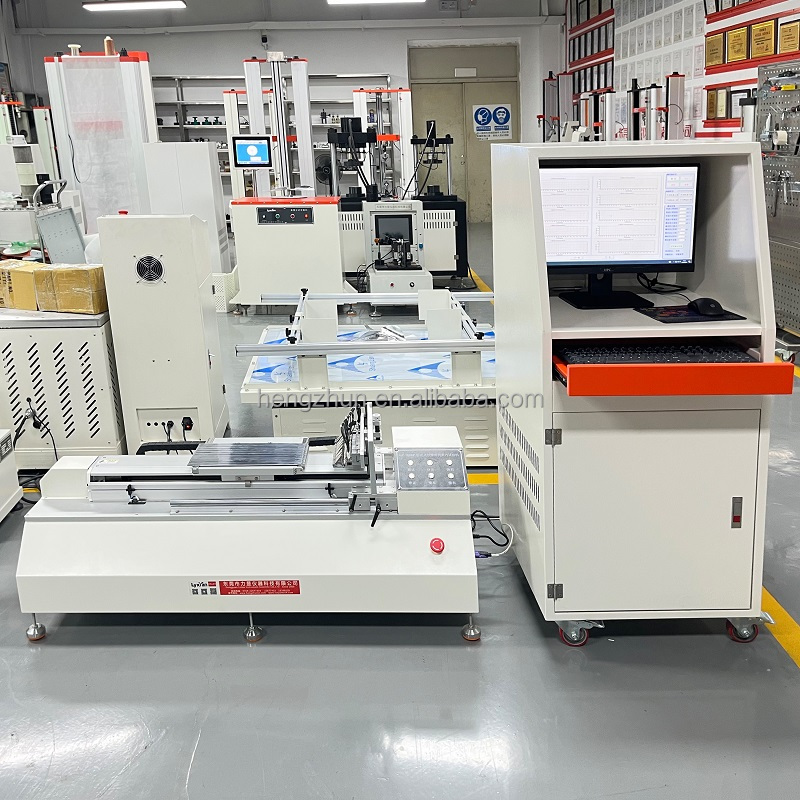

Peeling Testing Machine Details Images

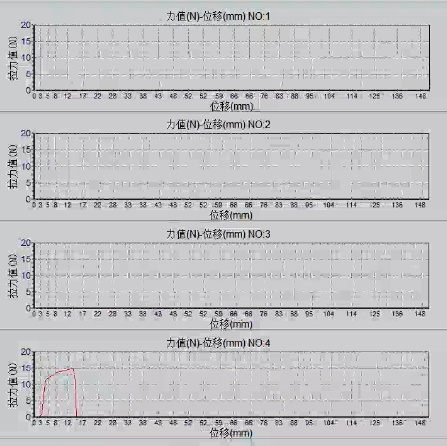

It is suitable for various mechanical testing items (such as peeling, stretching, tearing, compression, bending, shearing, splitting strength, four-point bending, three-point bending, peeling, puncture, bag sealing force, roll adhesive unwinding force, etc.) of various materials, copper foil, aluminum foil, pole piece, photovoltaic industry, adhesive, release film, release paper, self-adhesive, protective film, composite film, plastic, polymer material, composite material, safety belt, alloy material and other non-metallic materials and metal materials. It is fully computer controlled, with automatic shutdown and reset, automatic data saving, automatic OK/NG judgment, force value curve display, and data report generation.
More machine types
 |  |  |  |  |  |
| HZ-1007A | HZ-1007C | HZ-1007E | HZ-1003E | HZ-1005B | HZ-1005A |
| Max Force:200kg | Max Force:200kg | Max Force:100kg | Max Force:500kg | Max Force:500kg | Max Force:500kg |
 |  |  |  |  |  |
| HZ-1003A | HZ-1004A | HZ-1009A | HZ-1010A | HZ-1009C | HZ-1009B |
| Max Force:3T | Max Force:500kg | Max Force:10T | Max Force:3T | Max Force:10T | Max Force:30T |
